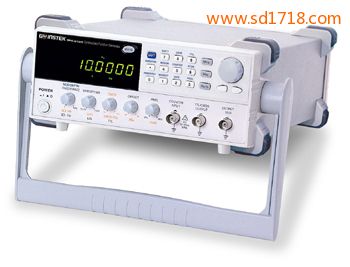

Based on Direct Digital Synthesized (DDS) technology and unique FPGA design, SFG-2000/2100 Series
Function Generators are built with exceptionally high performance far exceeding that of any conventional
function generators, at a very competitive price. Stable output frequency, low distortion, and fine
frequency resolution are the most remarkable characteristics of this product series. |
MAIN |
Frequency Range
(For Sine, Square) |
1Hz~20MHz |
Frequency Range
(For Triangle) |
1Hz~1MHz |
Frequency Resolution |
1Hz |
Frequency Stability |
∮ 20 ppm |
Frequency Accuracy |
∮ 20 ppm |
Frequency Aging |
∮ 5 ppm / year |
Output Function |
Sine, Square, Triangle |
Amplitude Range |
2mV~10Vpp(into 50?load) |
Impedance |
50?∮10? |
Attenuator |
-20dB∮1dB⊙2 |
DC Offset |
≌-5V°≈+5V(into 50?load) |
Duty Control Range |
20% to 80%, 2Hz~1MHz (Square wave only) |
Range Resolution |
1% |
Display |
9 digits LED display |
SINE WAVE |
Harmonics Distortion |
-55dBc,0.1Hz°200kHz; -40dBc,0.2MHz°4MHz; -30dBc,4MHz°10MHz
(Specification applied to both TTL/CMOS OFF and from MAX. to 1/10 level) |
Flatness (Relative to 1kHz) |
≌∮ 0.3dB,0.1Hz°1MHz; ≌∮ 0.5dB,1MHz°4MHz; ≌∮ 2dB, 4MHz°10MHz |
TRIANGLE WAVE |
Linearity |
≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz |
SQUARE WAVE |
Symmetry |
∮ 1% of period +4ns to 0.1Hz°100kHz |
Rise or Fall Time |
∝25ns at maximum output.(into 50?load) |
CMOS OUTPUT |
Level |
4Vpp∮1Vpp°15Vpp∮1Vpp adjustable; Rise or Fall Time ∝120ns |
TTL OUTPUT |
Level |
≠3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ∝25ns |
SWEEP OPERATION |
Rate |
100:1 ratio max. and adjustable
( In order to get maximum sweep span, the sweep time needs to be tuned on when adjust sweep span. ) |
Time |
1Sec°30Sec adjustable
( When the sweep time is too long, the stop frequency will reach and stay at the maximum frequency of instrument until the end of the sweep cycle. ) |
Mode |
Lin./Log. switch selector |
AMPLITUDE MODULATION |
Depth & Modulation Frequency |
0°100? ; 400Hz(INT), DC°1MHz(EXT) |
Carrier BW |
100Hz°5MHz(-3dB) |
EXT Modulation Sensitivity |
∝ 10Vpp for 100?modulation |
FREQUENCY MODULATION |
Deviation & Modulation Frequency |
0°∮50kHz,center at 1MHz, 400Hz fixed(INT), 1kHz fixed(EXT) |
EXT Modulation Sensitivity |
∝ 10Vpp for 10% modulation (center at 1MHz) |
FREQUENCY COUNTER |
Range |
5Hz°150MHz |
Accuracy |
Time base accuracy∮1count |
Time base |
∮20ppm(23?∮5?)after 30 minutes warm up |
Resolution |
The maximum resolution is 100nHz for 1Hz and 0.1Hz for 100MHz |
Input Impedance |
1M?/150pf |
Sensitivity |
∝ 35mVrms (5Hz~100MHz)
∝ 45mVrms (100MHz~150MHz) |
STORE/RECALL FUNCTION |
| |
10 groups of Setting memories |
POWER SOURCE |
|
| |
AC115V∮10%, AC 230V+10%/-15%, 50/60Hz |
ACCESSORIES |
| |
Instruction manual⊙1
Power Cord x 1
GTL-101⊙ 2 |
DIMENSION & WEIGHT |
266(W)⊙107(H)⊙293(D) mm
Approx. 3.2kg |
